LUCY™ ThorX End-to-End SBRT QA+ Phantom

Evaluate your entire radiotherapy treatment process.

Comprehensive Evaluation

Simulation, Treatment Planning, Imaging, and Delivery QA as recommended by TG-53, TG-66, TG-142 and AAPM MPPG guidelines.

CT/SIM QA

  • Laser Alignment and Orientation for gantry walls and ceiling
  • CT Couch Orientation, indexing, motion, and position
  • Slice Thickness / Profile Width and Sensitivity Profile
  • CT Number Constancy
  • Field Uniformity and Image Noise
  • Spatial and Contrast Resolution
  • Virtual SIM with Hidden Target Localization, Contouring, and Laser Movement Accuracy
Thorx new slices 1400

Treatment Planning QA

  • High-Contrast Kidney Target
  • High-Contrast Triangle Target
  • DICOM Transfer (Scan vs. Export Orientation, Position, Flip, etc.)
  • Spatial and Contrast Resolution
  • Slice Thickness
  • Field Uniformity and Noise
  • CT Number Constancy
  • In-Plane Spatial Integrity
  • Contouring, Margin Creation, DRR Spatial, Dose and DVH Accuracy
Thorx new targets 1400

Linac Imaging QA

  • DICOM and Volume Transfer Accuracy
  • Spatial Integrity Accuracy
  • TG-142 Position/Reposition, Monthly
  • MV/kV Coordinate Coincidence
  • CBCT Distortion, Spatial Resolution, Contrast, Constancy, Uniformity, and Noise
Thorx scan head 1400

Treatment Delivery QA

  • High-Contrast Kidney Target with Ion Chamber Measurement in Target and Margin
  • High-Contrast Triangle Target with Ion Chamber Measurement
  • Rotating Insert with Target bisected by Film Plane and Ion Chamber Measurement
  • Spinal Insert bisected by Film Plane
  • Target Localization Delivery Accuracy and Dose Verification

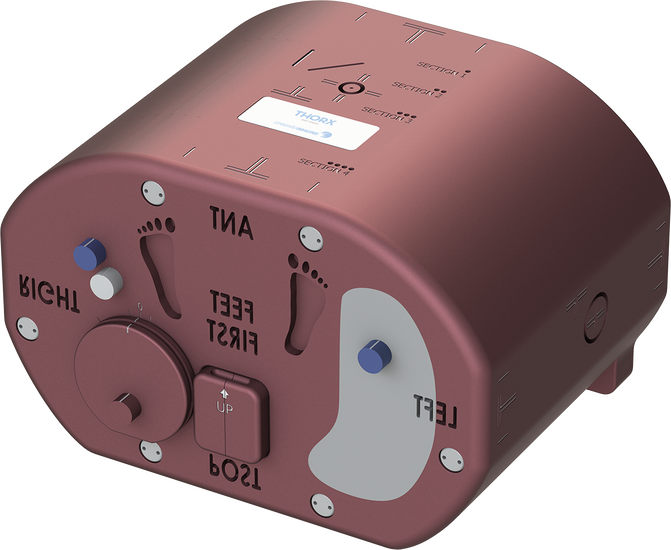

Thorx new main 1400

Key Features

  • • Phantom Dimensions: 251mm x 320mm x 210mm
  • • Primary Material: Virtual Water
  • • Weight: 13 kg
  • • Visual Laser Alignment
  • • Geometric targets
  • • Pseudo-anthropomorphic anatomy
  • • Multiple ion chamber cavities
Thorx new main 1400
